Battery Storage

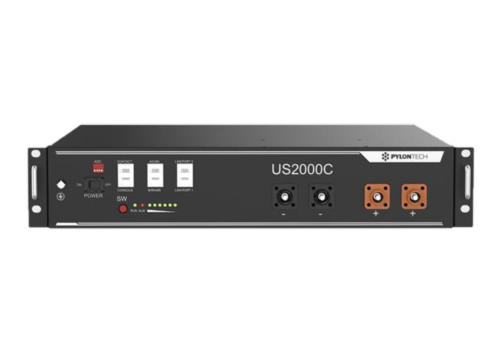

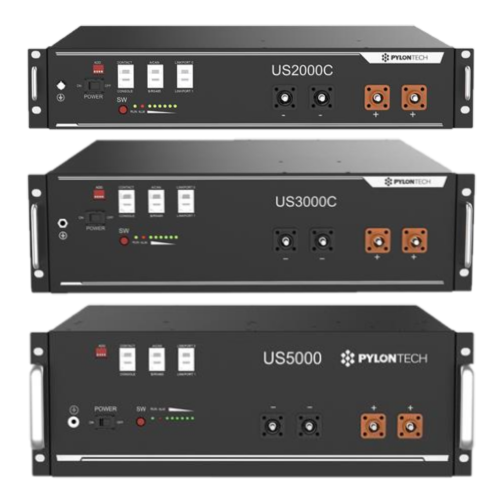

Pylontech

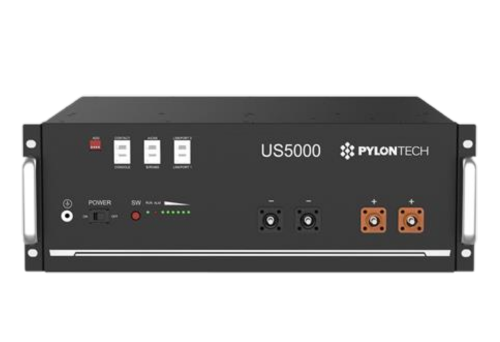

US C Series

The US series from Pylontech is a modular Lithium Ion battery that comes in 3 sizes. These are compatible with most battery and hybrid inverters on the market.

Vertical industry integration ensures more than 4500 cycles
Modular design gives the end customers the power of choice of capacity
Vertical industry integration ensures more than 6000 cycles
90 – 95% DoD (depth of discharge)
2.4kWh – 4.8kWh units
Different sizes to suit application (US2000C, 3000C, 5000C)
Modular design gives the end customer the option to expand their capacity
Compatible with most of the available Hybrid & AC coupled inverters (see the compatibility document)
Simple buckle fixing minimizes the installation time and cost
Up to 16 units can be stacked in parallel
Safety Cert. TÜV CE UN38.3

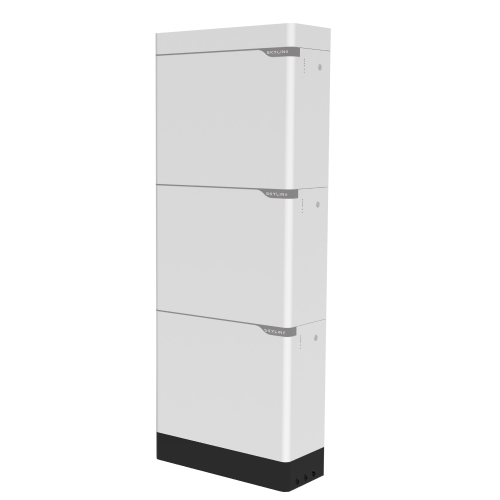

Skyline

SkyBatt Battery

SkyBatt L5 is a low-voltage-architecture-based battery storage using Lithium-ion (LFP) technology. Each battery pack is 5 kWh and up to 6 battery packs can be connected in parallel, giving 30kWh battery storage.

Optimized charging curve increases battery life by 10%
8000-cycle Lithium-ion (LFP) battery to provide a long life cycle
Fully compatible with the hybrid inverters of Skyline, Victron, Solis, Goodwe, Deye, Growatt and Megarevo
Low-voltage-architecture-based Lithium-ion (LFP) battery to keep the home safe. A built in fire extinguisher adds an extra level of protection
SkyBatt L5 offers an optional built-in heater for use in cold weather(below 0℃)
Skyline provides a 10-year product warranty for our battery

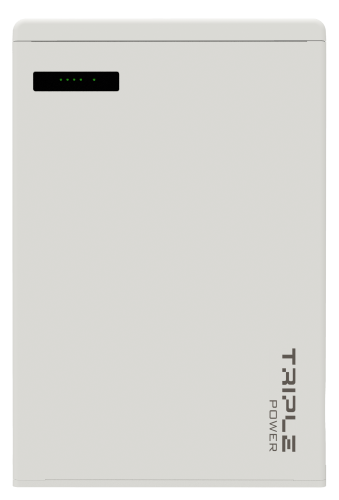

SolaX

T-Batt 5.8kWh

SolaX’s Triple Power Battery is a 5.8kWh modular unit. Capable of 90% depth of discharge.

Lithium ion Phosphate composition is known for its exceptional safety features, with a high depth of discharge (DOD) of up to 90% and a cycle life of over 6000 times. It boasts an IP65 protection level, making it suitable for floor or wall mounting.

This unit is also IP65 rated allowing it to be installed outdoors.

The Master unit comes with the BMS already installed, with dedicated salve units which can be daisy chained onto the master.

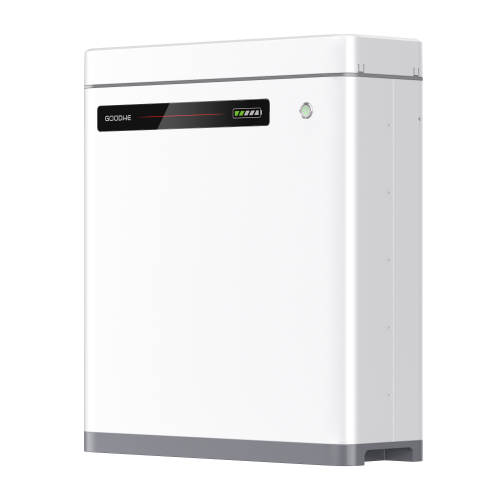

GoodWe

Lynx 5.4U

Lynx Home U Series is compatible with GoodWe ES/EM/SBP inverters, allowing for a more effortless energy storage solution construction. With its wide capacity range scalable from 5.4 kWh to 32.4 kWh, Lynx Home U Series can be set to adapt to the flexible needs whenever you need.

Great solution for hybrid systems, or where AC coupled retrofit storage is required.

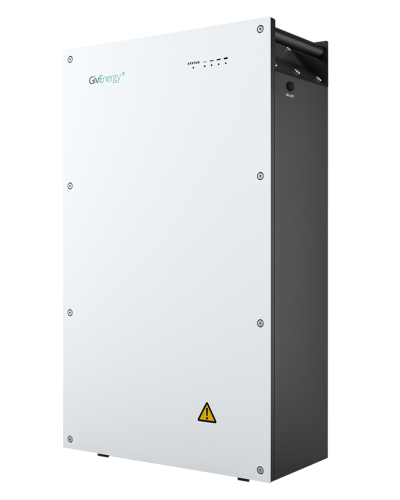

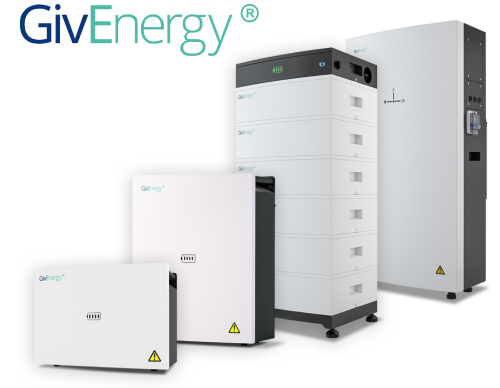

GivEnergy

Gen2 9.5kW

Utilising lithium iron phosphate, GivEnergy batteries are extremely safe and can be installed in a wide range of locations. The battery chemistry does not contain any Cobalt, making it non-flammable and the battery pack is 99% recyclable. Our market leading battery warranty means you can use your battery as often as you need for 10 years and still be covered.

9.5 kWh / 186 Ah Capacity
100% Depth of Discharge
IP65 Rating
Dimensions 800H X 242D x 480W (mm)
10 Year Warranty

Other battery sizes are available. Accessories are needed for this to be installed, please talk to our team for a quote that meets your needs.

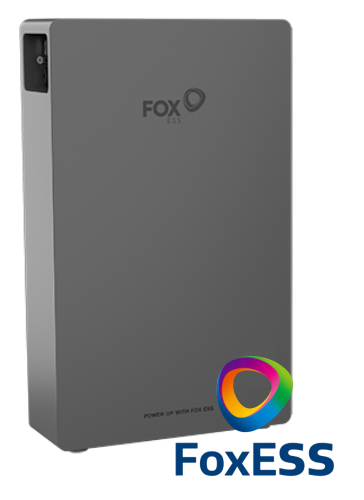

FOX

LV 5200

The LV5200 are high-performance, scalable, low-voltage battery storage modules. Compatible with several inverter manufacturers.

90% Depth of Discharge
Wide Temperature Tolerance
Easy Installation
>6000 Life Cycles
CAN/RS485 Communication

Warranty can be extended to 10 years upon successful registration on the Fox ESS website. Modular high=voltage options are also available, as are Fox-ESS inverters. Talk to one of our team for more information or pricing.

Datasheet

>

Various

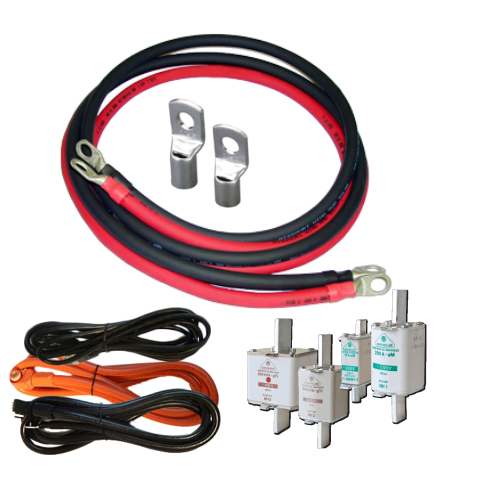

Accessories

We sell a wide range of accessories for battery storage systems including;

Cables
Isolators
Warning labels
Brackets
Racking
Fuse disconnects and fuses

As well as our standard accessories we are also able to order in specific items for on-grid and off-grid storage systems. Talk to one of the team today to discuss your requirements.
